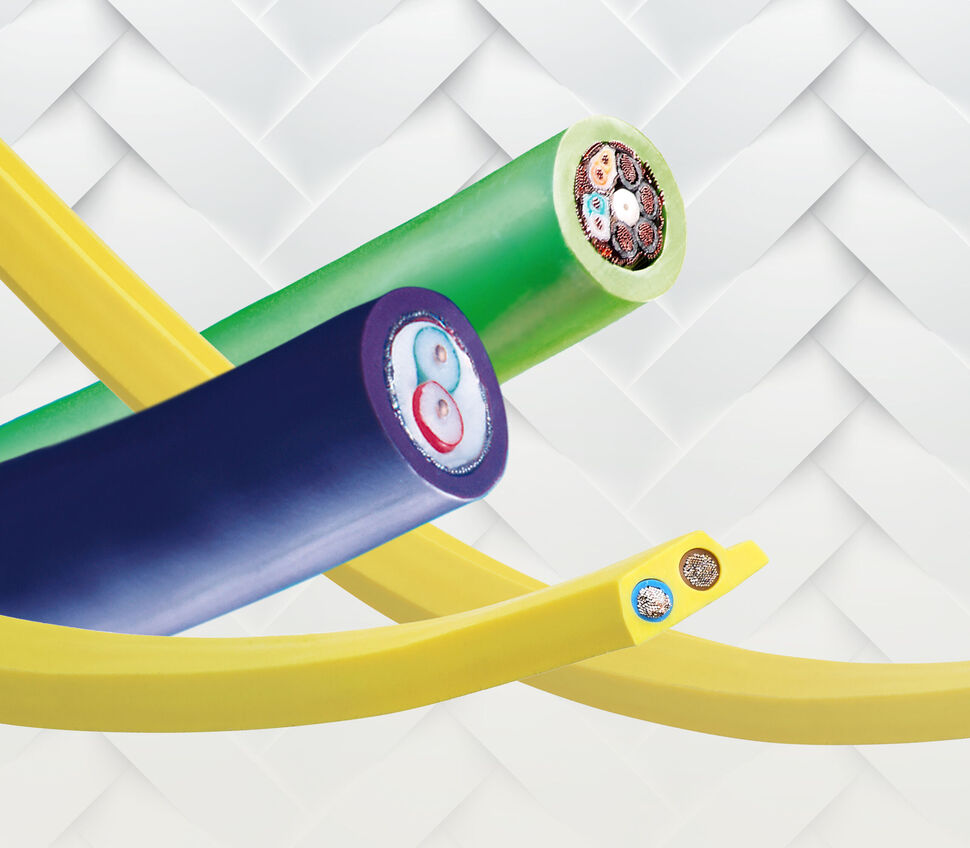

BizLink SeaLine® Bus cables

Bus cables for automation systems in marine applications

Bus cables enable secure and fast data exchange on all levels and thus create the possibility of implementing innovative machine and plant concepts. Due to the flexibility, the bus cables offer the user maximum freedom in designing the machine and system architecture. Depending on the application, it is necessary for the cable to withstand the mechanical, chemical and thermal stresses while retaining the defined transmission characteristics.

Cross-sections

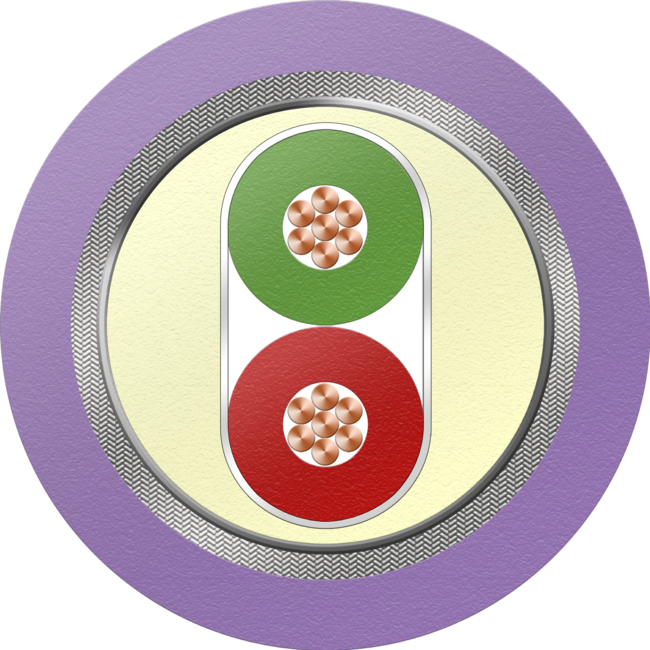

PROFIBUS cable for flexible installation in marine applications

L45467-G17-C46

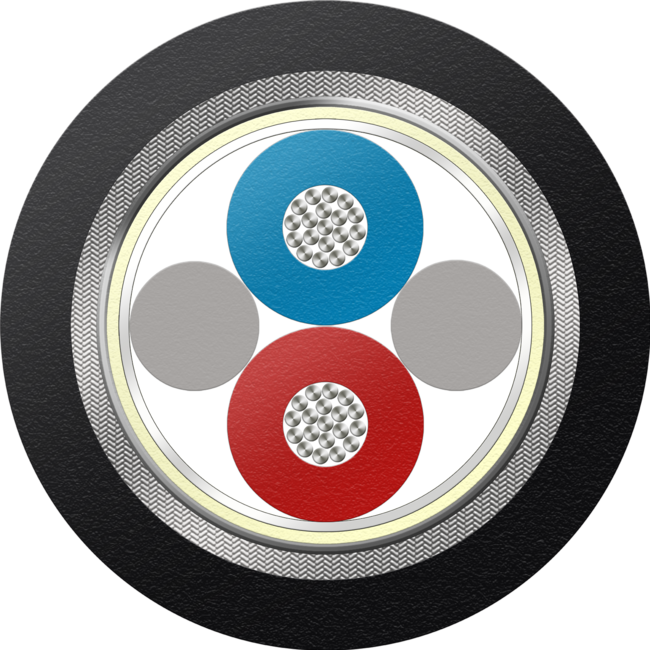

CAN cable for marine applications

L45467-F19-C16

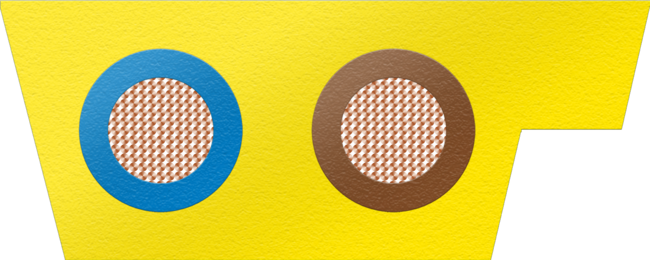

AS-Interface cable, yellow

L45587-M21-Y1

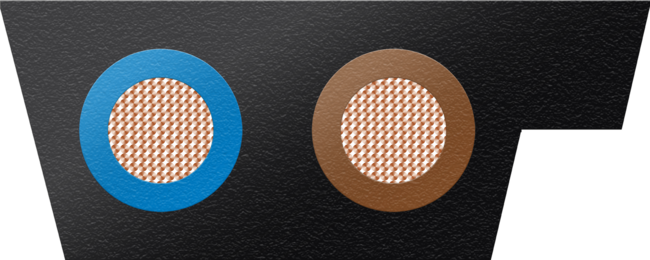

AS-Interface cable, black

L45587-M21-Y11

Our product range comprises:

  • PROFINET cables
  • PROFIBUS cables
  • CAN cables
  • AS-Interface cables
  • Foundation Fieldbus cables





Optional characteristics:

  • Flame retardant
  • Marine approvals
  • Weld splatter resistant
  • Highly flexible
  • Permanent installation
  • Halogen free
  • Silicon free



  • Sunlight resistant
  • Oil resistant
  • Cold resistant
  • Chemical resistant
  • Trailing cable with up to 10 million bending cycles
  • RoHS compliant
