BizLink SeaLine® High temperature cables

Marine cables up to 1,250°C

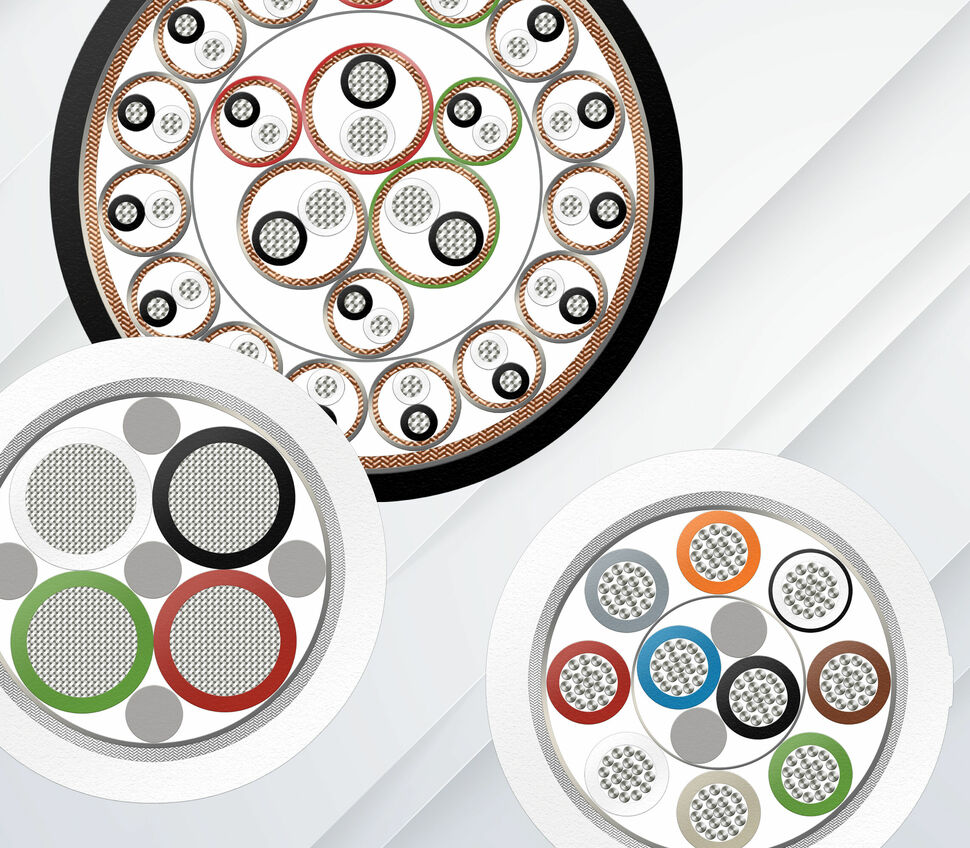

For the marine market, BizLink develops and produces high temperature cables which are designed for safe operation at temperatures up to 1,250 °C. For every special shipbuilding applications, BizLink will select the materials that match the property profile in the best possible way required by the specified temperature range. These materials include silicone, fluoropolymers, glass fiber and ceramic-based insulation materials.

Characteristics

Silicone cables:

  • Extraordinarily electrical and fire resistant properties
  • Extremely flexible for  low and high temperatures


Fluorpolymere cables:

  • Resistance to temperatures of up to +260 °C
  • Oil and chemical  resistant (acids and alkaline solutions)
  • Flame retardant and low-smoke

Insulation materials made of glass fiber, mica and ceramic-based:

  • Temperature range up  to +1,250 °C
  • Good mechanical strength
  • Non ageing

Overview

Order No.19203283641895518973
Type designationThBC(s)B (Th 0,75...10mm²) TAE00002HRFpBB 0,5 ... 50mm²
GL 11196-14 HH
Fp 1...3x0,50...50mm²
TAE00002HS

Fp(C(s)Fp) (Fp 0,5... 10mm²)
TAE00002HU

ApplicationPower and control cableCable for cryogenics applications
(Liquefied natural gas)
Connection cable

Connection cable

Core2 up to 24 cores
XL- PE/EPDM-compound
Singlecore,
1 layer BizLink ex-tape, Polyimide tape,
Singlecore or twisted pair,
ETFE (7Y), FEP (6Y), PTFE (5Y)

2 up to 24 cores,
ETFE (7Y), FEP (6Y), PTFE (5Y)

ConductorFiller optionaln.a.n.a.Filler optional
ShieldCoppern.a.n.a.Copper
JacketXL-EPDM-compoundPTFE (5Y)n.a.

ETFE (7Y), FEP (6Y), PTFE (5Y)

CharacteristicsHalogen free
Flame retardent
Chemical resistant
Seawater resistant
Oil resistant
Chemical resistant
Seawater resistant
Oil resistance
Chemical resistant
Seawater resistant
Oil resistant Temperature resistant up to +260°C

Chemical resistant Seawater resistant
Oil resistant
Temperature resistant up to +260°C

ApprovalsDNV / GLDNV / GLDNV / GLDNV / GL
