FlexLine® Coaxial cables

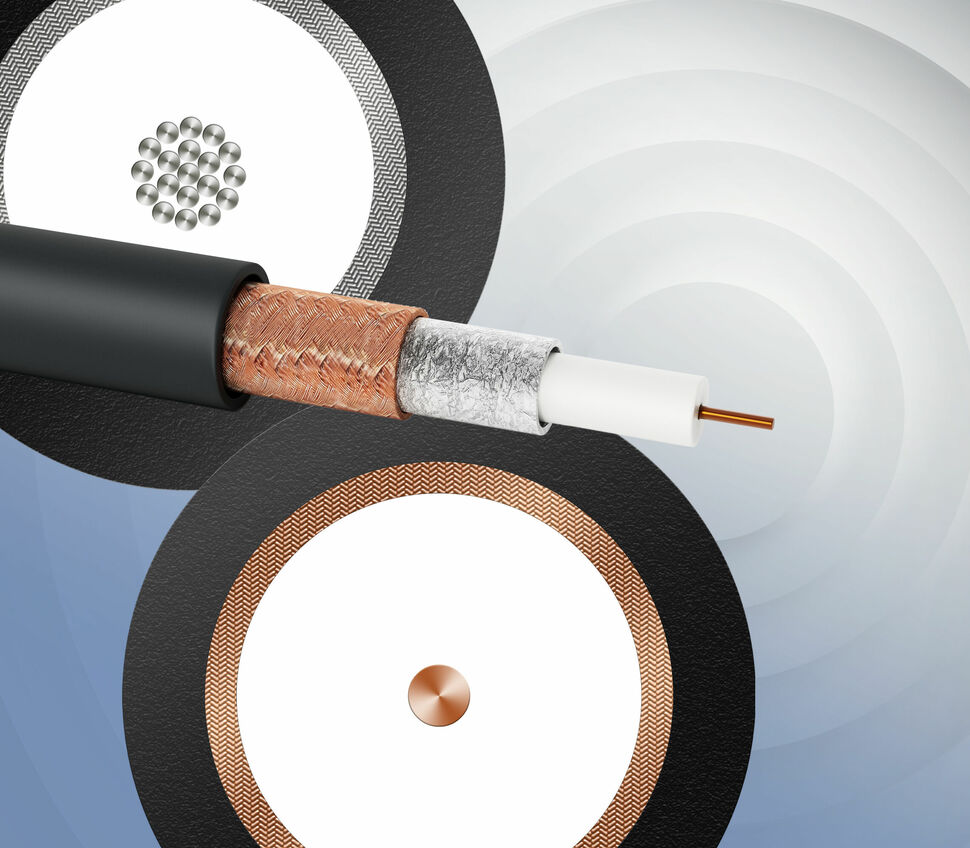

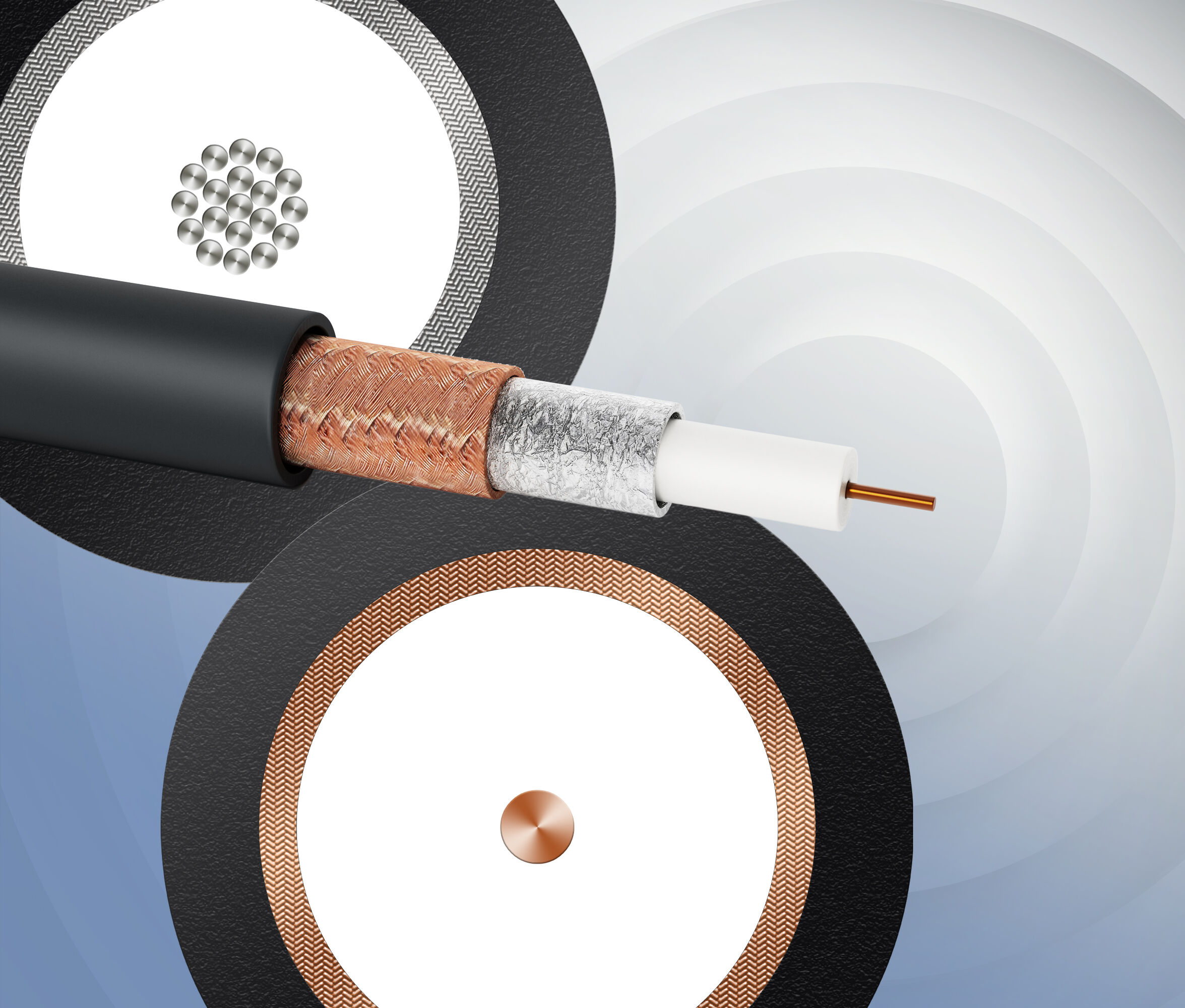

Coaxial cables for civil and military shipbuilding applications

BizLink develops and manufactures coaxial cables on and below decks of commercial ships for a wide range of applications. Data and signals can be transmitted without interference in a variety of frequency ranges.

BizLink coaxial cables feature excellent electromagnetic shielding and a uniform foaming of the dielectric. One of BizLink's specialities is the skin-foam-skin extrusion.

The BizLink product portfolio contains single and double shielded cables with and without a foil as well as cables with a corrugated jacked and shielded foamed dielectric.

Characteristics:

  • Low attenuation
  • Highly flexible
  • Flame resistant and halogen free
  • Different RG types available
  • For indoor and outdoor use
  • VDE, UL and CSA approval

Overview

Order No.

V45466-B21-C36

L45466-B20-C6

Type designation

02YSWKH 4.8/12.1-50 FRNC

02YSWKH 3.6/9.1-50 ALCU FRNC

Application

Flexible cable ½“ R (FRNC), CATVR /CMR

Super flexible cable 1/2“S (FRNC),
UL listed

Conductor

Inner conductor: copper-clad aluminium wire ø 4.8 mm (0.189 in),
insulation of foamed polyethylene (PE) with skin ø 12.1 mm (0.476 in),
outer conductor: copper-tape, longitudinal welded,
annular corrugation ø (13.7 ±0.15) mm (0.539 ±0.006 in)

Inner conductor: copper-clad aluminium wire ø 3.6 mm (0.142 in),
insulation of foamed polyethylene (PE) with skin ø 9.1 mm (0.358 in),
outer conductor: copper-tape, longitudinal welded,
spiral corrugated ø (12.3 ±0.15) mm (0.484 ±0.006 in)

Jacket

Thermoplastic copolymer, black (FRNC)
ø (16.0 ±0.2) mm (0.630 ±0.008 in)

Thermoplastic copolymer, black (FRNC)
ø (13.5 ±0.2) mm (0.531 ±0.008 in)

Characteristics

Flame retardant acc. to IEC 60332-3-24 (Cat. C)
Corrosivity of fire gases acc. to IEC 60754-2

Flame retardant acc. to IEC 60332-3-24 (Cat. C)
UL File E121168 Vol. 1 Sec. 3 Page 1
Corrosivity of fire gases acc. to IEC 60754-2
Smoke-density acc. to IEC 61034-1/2
Flame retardant acc. to IEC 60332-1-2
Fire performance acc. to EN 50264-1 Sec. 8 and 3.4
