BizLink SeaLine® CCTV camera cables

Hybrid cables in modern shipbuilding applications

CCTV, Closed Circuit Television, means a video surveillance system for monitoring private or public spaces. Closed lines represent the non-public transmission of images and footage. This ensures that no access by third parties can take place.

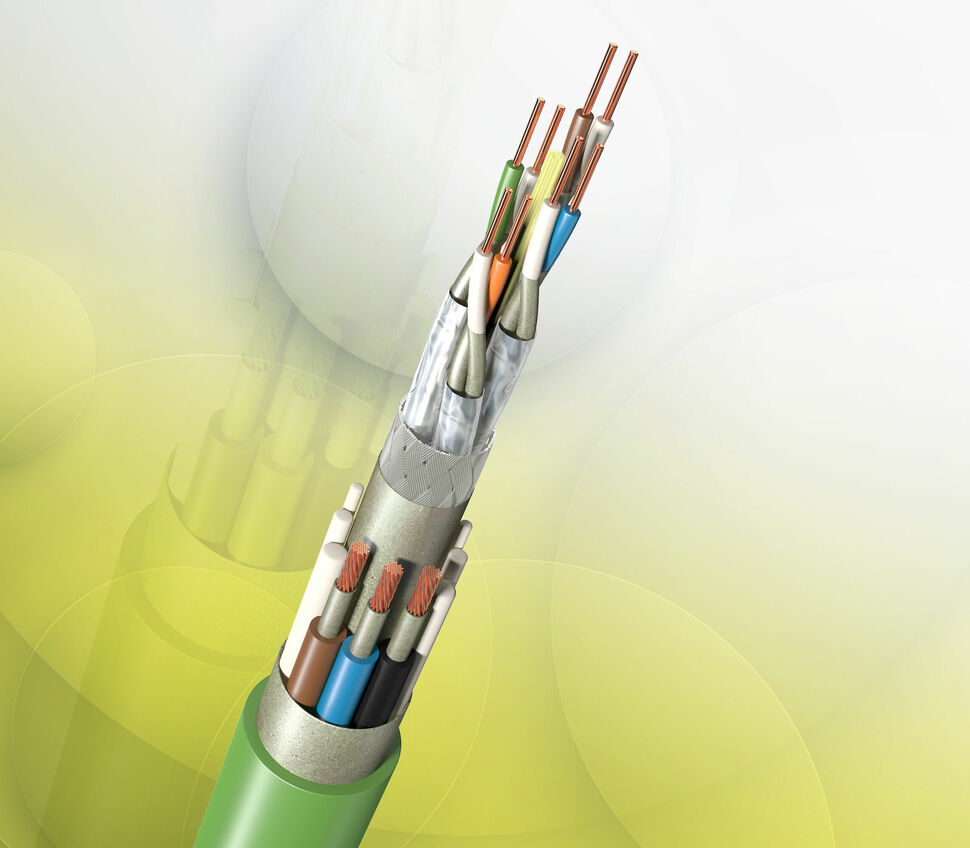

More and more surveillance cameras are being installed on modern cruise ships for security reasons. BizLink offers a hybrid cable for this purpose, which is available in three variants: for analog image transmission, via a coaxial cable element, digitally via a Cat 5+ element or via an optical fibre.

In shipbuilding, and especially in the offshore sector, CCTV systems are used to monitor ship loading and unloading. In addition, these systems are also used for safety-related aspects, such as the monitoring of oil drilling platforms.

Overview

Order No.

 L45466-D114-W36

L45467-J316-W6

Type designation

02YSCH 0.8/3.5-75
L-H 3X1.5
L-H CH 2X2X0.56 PIMF GN FRNC

LI9Y(ST)C 4X2X0.6/1.2-100
LIH H 3X1X1.5 GN FRNC

Conductor

Coaxial element
Bare copper wire ø 0.8 mm,
insulation of foamed Polyethylene (PE) with skin ø 3.5 mm (0,138 in),
shield braiding of bare copper wires 0.13 mm dia,
inner jacket: FRNC

Wire LIH 0.56/1.6
Stranded bare copper wire 7 X 0.32 ø 0.96 mm (0,038 in),
insulation of thermoplastic copolymer (FRNC) ø 1.6 mm (0,063 in),
2 wires twisted to a pair,
alulaminate foil overlapped,

Triple Wire LIH 1.5/2.2
Stranded bare copper wire 19 X 0.32 ø 1.6 mm,
insulation FRNC,
3 wires twisted to a triple

Wire LIH 1.5/2.2 (Power)
Stranded bare copper wire 19 X 0.32 (16 AWG) (1.5 mm²) ø 1.6 mm (0,063 in),
insulation of thermoplastic copolymer (FRNC) ø 2.2 mm (0,087 in)

LI9Y(ST)C 4X2X0.6/1.2-100 (Cat5)
Stranded bare copper wire 7 X 0.2 (24 AWG) (0.22mm²) ø 0.6 mm (0,024 in),
insulation of polypropylen ø 1.2 mm (0,047 in),
2 wires twisted to a pair,
4 pairs twisted,
plastic tape, overlapped,
alulaminate foil overlapped,
shield braiding of tinned copper wires 0.13 mm dia (36 AWG)

Core

1 Coaxial element, 1 triple, 2 pairs, filler

3 wires + fillers

Shield

Shield braiding of tinned copper wires ø 0.15 mm,
plastic tape, overlapped

Shield braiding of tinned copper wires 0.13 mm

Jacket

Thermoplastic copolymer  (FRNC),
ø (11.9 ±0.3) mm (0,469 ±0,012 in)

Thermoplastic copolymer (FRNC),
ø (10.2 ±0.3) mm (0,402 ±0,012 in)

Characteristics

Flame retardant acc. to IEC 60332-3-24 (Cat. C)

Flame retardant acc. to IEC 60332-3-22 (Cat. A/F)
